Body : 450 PSIG Hyd.
Seat : 325 PSIG Hyd.
Our Works Test Certificate can be issued, if required.
Water, Oil, Air
84818010

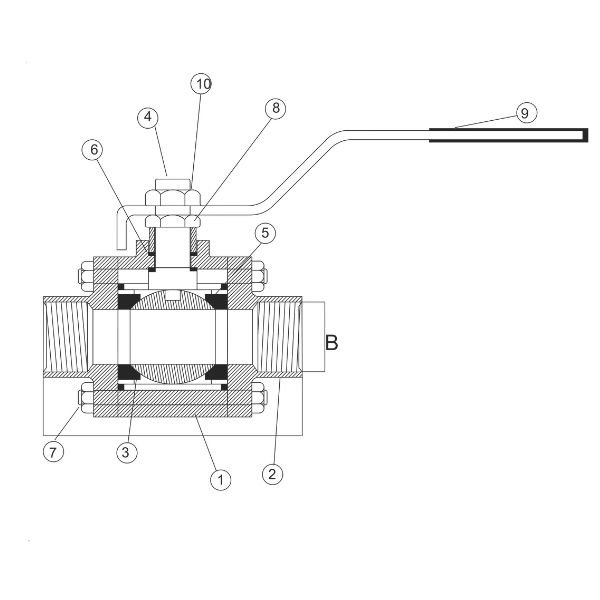

| PNo. | Part | Nos. | Material | Standard |
|---|---|---|---|---|
| 1 | Body | 1 | CF8 | ASTM A351 |
| 2 | Side Connectors | 2 | CF8 | ASTM A351 |
| 3 | Ball | 1 | S.S. 18% Cr. | AISI-304 |
| 4 | Stem | 1 | S.S. 18% Cr. | AISI-304 |
| 5 | Body Seat Ring | 2 | Teflon | ASTM D3294 |
| 6 | Gland Packing | 4 | Teflon | ASTM D3294 |
| 7 | Stud & Nut | 4 & 8 | Alloy Steel/H.T Steel | ASTM A193Gr. B7
ASTM A194Gr. 2H |
| 8 | Gland | 1 | S.S. 18% Cr. | AISI – 304 |
| 9 | Lever | Carbon Steel | S.S./M.S. | AISI-304/IS:226 |
| 10 | Lever Nut | 1 | S.S. 18% Cr. | AISI-304 |
| 11 | Gasket | 2 | Teflon | ASTM D3294 |

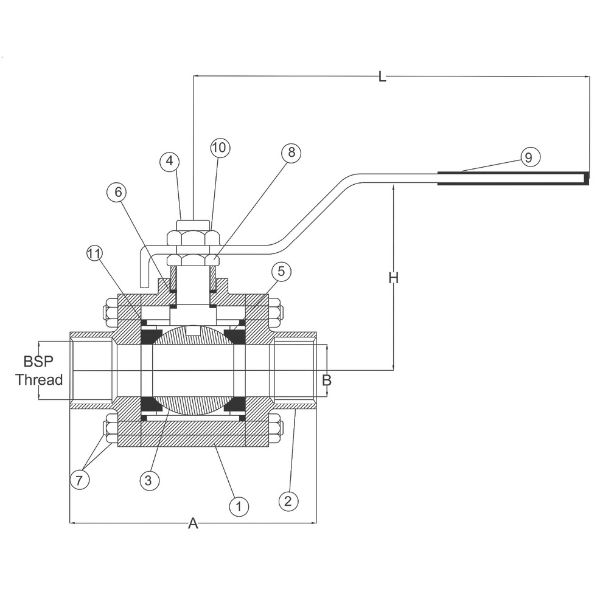

| Nominal Size (mm) | A±1.5 | B | Thread | L(aprrox.) | H(approx.) | MRP / Piece |
|---|---|---|---|---|---|---|
| 15 | 65 | 12.5 | 1/2″ BSP | 145 | 65 | – |
| 20 | 75 | 19 | 3/4″ BSP | 145 | 68 | – |
| 25 | 85 | 25 | 1″ BSP | 165 | 78 | – |
| 40 | 110 | 38 | 1.1/2″ BSP | 220 | 98 | – |
| 50 | 125 | 50 | 2″ BSP | 220 | 108 | – |
| Nominal Size (mm) | A±1.5 | B | Thread | L(aprrox.) | H(approx.) | MRP / Piece |
|---|---|---|---|---|---|---|
| 15 | 65 | 12.5 | 1/2″ BSP | 145 | 65 | – |
| 20 | 75 | 19 | 3/4″ BSP | 145 | 68 | – |
| 25 | 85 | 25 | 1″ BSP | 165 | 78 | – |
| 40 | 110 | 38 | 1.1/2″ BSP | 220 | 98 | – |
| 50 | 125 | 50 | 2″ BSP | 220 | 108 | – |
