Our Works Test Certificate can be issued, if required.
Water, Oil, Air
84818010

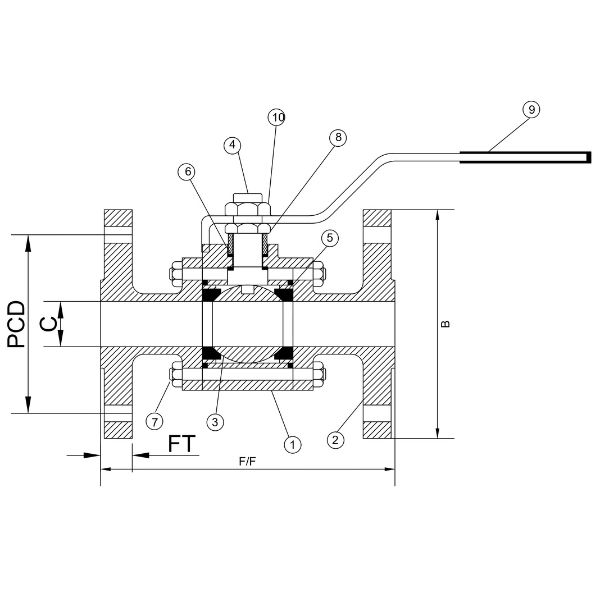

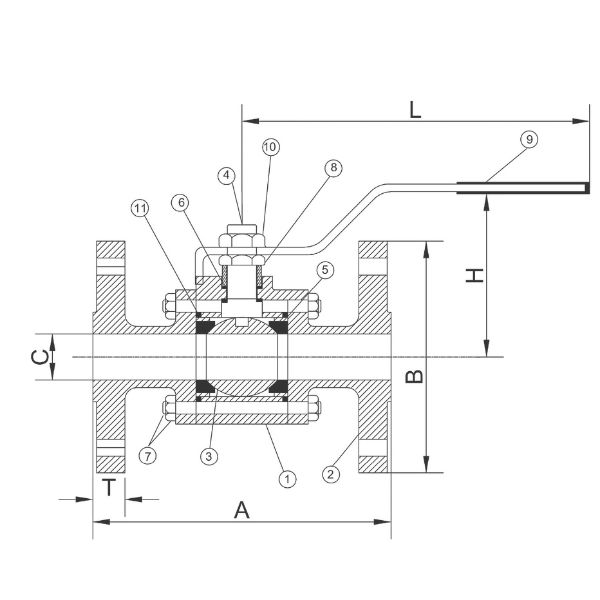

| PNo. | Part | Nos. | Material | Standard |
|---|---|---|---|---|
| 1 | Body | 1 | CF8 | ASTM A351 |
| 2 | Side Flanges | 2 | CF8 | ASTM A351 |
| 3 | Ball | 1 | S.S. 18% Cr. | AISI-304 |
| 4 | Stem | 1 | S.S. 18% Cr. | AISI-304 |
| 5 | Body Seat Ring | 2 | Teflon | ASTMD3294 |
| 6 | Gland Packing | 4 | Teflon | ASTM D3294 |
| 7 | Stud & Nut | 4 & 8 | Alloy Steel/H.T Steel | ASTM D3294 |
| 8 | Gland | 1 | S.S. 18% Cr. | AISI – 304 |
| 9 | Lever | Carbon Steel | S.S./M.S. | S.S./M.S. |
| 10 | Lever Nut | 1 | S.S. 18% Cr. | AISI-304 |
| 11 | Gasket | 2 | Teflon | ASTMD3294 |
| Nominal Size (mm) | F/F | B | C | PCD | FT | MRP / Piece |
|---|---|---|---|---|---|---|
| 15 | 108 | 89 | 12.5 | 60.5 | 10 | – |
| 20 | 117 | 98.5 | 19 | 70 | 10.5 | – |
| 25 | 127 | 108 | 25.4 | 79.5 | 11.2 | – |
| 40 | 165 | 127 | 38 | 98.5 | 14.5 | – |
| 50 | 178 | 152.5 | 51 | 120.5 | 16 | – |
| 65 | 190 | 178 | 64 | 140 | 17.5 | – |
| 80 | 203 | 191 | 76 | 152.5 | 18 | – |
| 100 | 229 | 229 | 102 | 190.5 | 22 | – |
| 150 | 267 | 279 | 150 | 241.5 | 25.5 | – |
| Nominal Size (mm) | F/F | B | C | PCD | FT | MRP / Piece |
|---|---|---|---|---|---|---|
| 15 | 108 | 89 | 12.5 | 60.5 | 10 | – |
| 20 | 117 | 98.5 | 19 | 70 | 10.5 | – |
| 25 | 127 | 108 | 25.4 | 79.5 | 11.2 | – |
| 40 | 165 | 127 | 38 | 98.5 | 14.5 | – |
| 50 | 178 | 152.5 | 51 | 120.5 | 16 | – |
| 65 | 190 | 178 | 64 | 140 | 17.5 | – |
| 80 | 203 | 191 | 76 | 152.5 | 18 | – |
| 100 | 229 | 229 | 102 | 190.5 | 22 | – |
| 150 | 267 | 279 | 150 | 241.5 | 25.5 | – |
